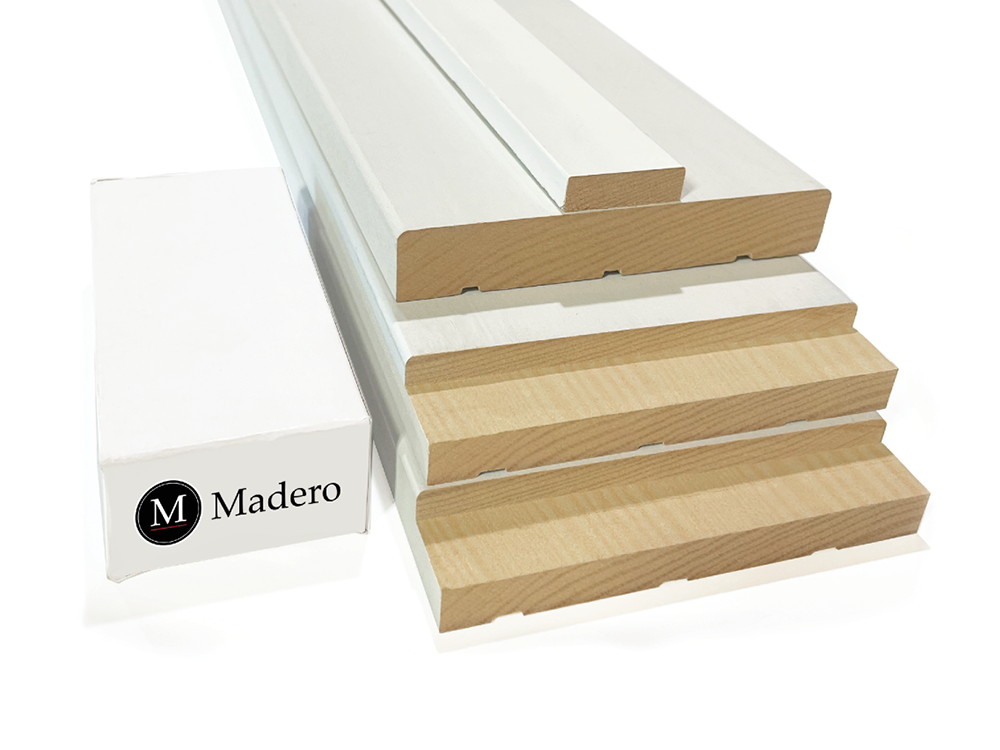

New expanded offerings in Madero Jamb Packs:

Primed Pine Double Rabbetted is available in 4-1/2” jamb, machined and complete with three 3-1/2” ball bearing hinges.
• Specify right hand or left hand at time of ordering.
• Six hinge finishes from which to choose.

Primed Pine Flat Jamb is available in 4-1/2” and 6 1/2” jamb, 3422 Bullnose stop, machined and complete with three 3 -1/2” ball bearing hinges.
• Gesso coating primer is ready for painting.
• Specify reversible, right hand or left hand at time of ordering.
• Six hinge finishes from which to choose.
• Colonial 936 stop is available as a special order item.

Primed MDF Flat Jamb is available in 4-1/2” and 6-1/2” jamb, 3422 Bullnose stop, machined and complete with three 3-1/2” ball bearing hinges.
• Specify reversible, right hand or left hand at time of ordering.
• Six hinge finishes from which to choose.
• Colonial 936 stop is available as a special order item.

Single Swing Opening:
Knock Down Unit: Pick your frame, add the door slab of your choosing. Door and frame will be shipped as a Bulk Pack on a horizontal pallet.
Prehung Unit: Pick your frame, add the door slab of your choosing, add the item code PH INT PREHUNG. Multiple units will be shipped on a vertical pallet.

Interior Door Handing Chart:


New expanded offerings in Madero Jamb Packs:

Primed Pine Double Rabbetted is available in 4-9/16” jamb, machined and complete with three 3-1/2” ball bearing hinges.
• Specify right hand or left hand at time of ordering.
• Six hinge finishes from which to choose.

Primed Pine Flat Jamb is available in 4-9/16” and 6-9/16” jamb, 3422 Bullnose stop, machined and complete with three 3 -1/2” ball bearing hinges.
• Gesso coating primer is ready for painting.
• Specify reversible, right hand or left hand at time of ordering.
• Six hinge finishes from which to choose.
• Colonial 936 stop is available as a special order item.

Primed MDF Flat Jamb is available in 4-9/16” and 6-9/16” jamb, 3422 Bullnose stop, machined and complete with three 3-1/2” ball bearing hinges.
• Specify reversible, right hand or left hand at time of ordering.
• Six hinge finishes from which to choose.
• Colonial 936 stop is available as a special order item.

Double Door Opening:
Double door frames are available in MDF and Primed Pine Flat Jamb in both 4-9/16” and 6-9/16” units. The jamb kit includes header cut to length, two hinge jambs prepped for 3 hinges, two sets of three 3-1/2” hinges (6 finishes to choose from).
KNOCK DOWN UNIT: Pick your frame, add the door slab of your choosing. Door and frame will be shipped as a Bulk Pack on a horizontal pallet.
PREHUNG UNIT: Pick your frame, add the door slab of your choosing, add the item code PH INT PREHUNG. Multiple units will be shipped on a vertical pallet.


Three options for double frame hardware are available:

Magnetic Catch:
Each magnetic catch has a holding capacity of 18 pounds. Zinc plated steel strikes are shipped loose for site install. One magnet is installed into the top of the door. Both doors are active - no handing required.

M1800-1 MAG CATCH

Roller Catch:
The doors are machined and Roller Catches installed. Jamb plates are installed on site. Both doors are active - no handing required.

Flushbolt (active door only)
Flushbolts are added to secure the passive side of double doors. The doors and frame are prepped and flushbolt installed at top of door. Specify if the right or left hand door is active, at time of ordering.
