The 451 Series is an aluminum single door system that is fully assembled and welded, designed for exterior applications. It delivers a balanced approach to design and durability, offering a refined entry solution for traffic environments such as offices, retail storefronts, multifamily buildings and more.

 INCLUDES:

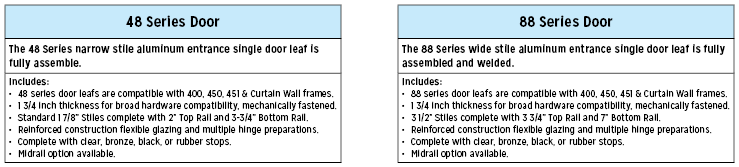

  • 451 series door systems are compatible with 400 framing systems and either the 48 or 88 series door leaf.
  • Non thermal leaf, thermally broken frame. Door leaf is fully assembled, welded, and mechanically fastened for superior construction and performance.
  • Available in configurations of Single or Double, optional sidelites and transoms.
  • Units are pre-glazed, pre-assembled and drilled with counter sunk holes for ease of install.
  • Available in Clear or Bronze or Black Anodized finishes.
  • Midrail option available.

Select from hardware kit option A, B, C, or X:

Factory installed hardware includes hinges, closer, sill.
     Will accept any aluminum door hardware. (48 using 31/32 Backsets & 88 using 1 1/2" Backsets)

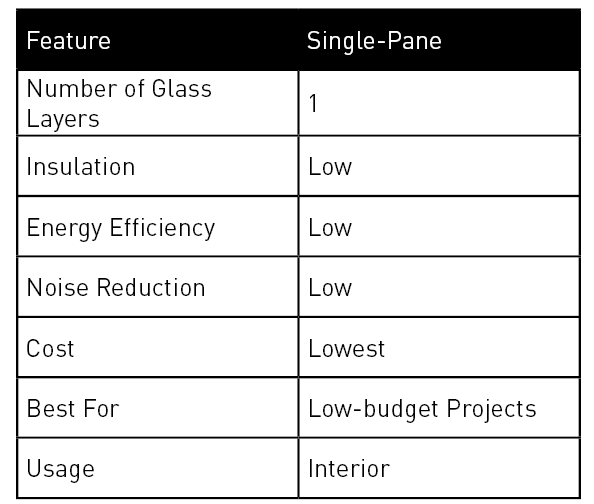

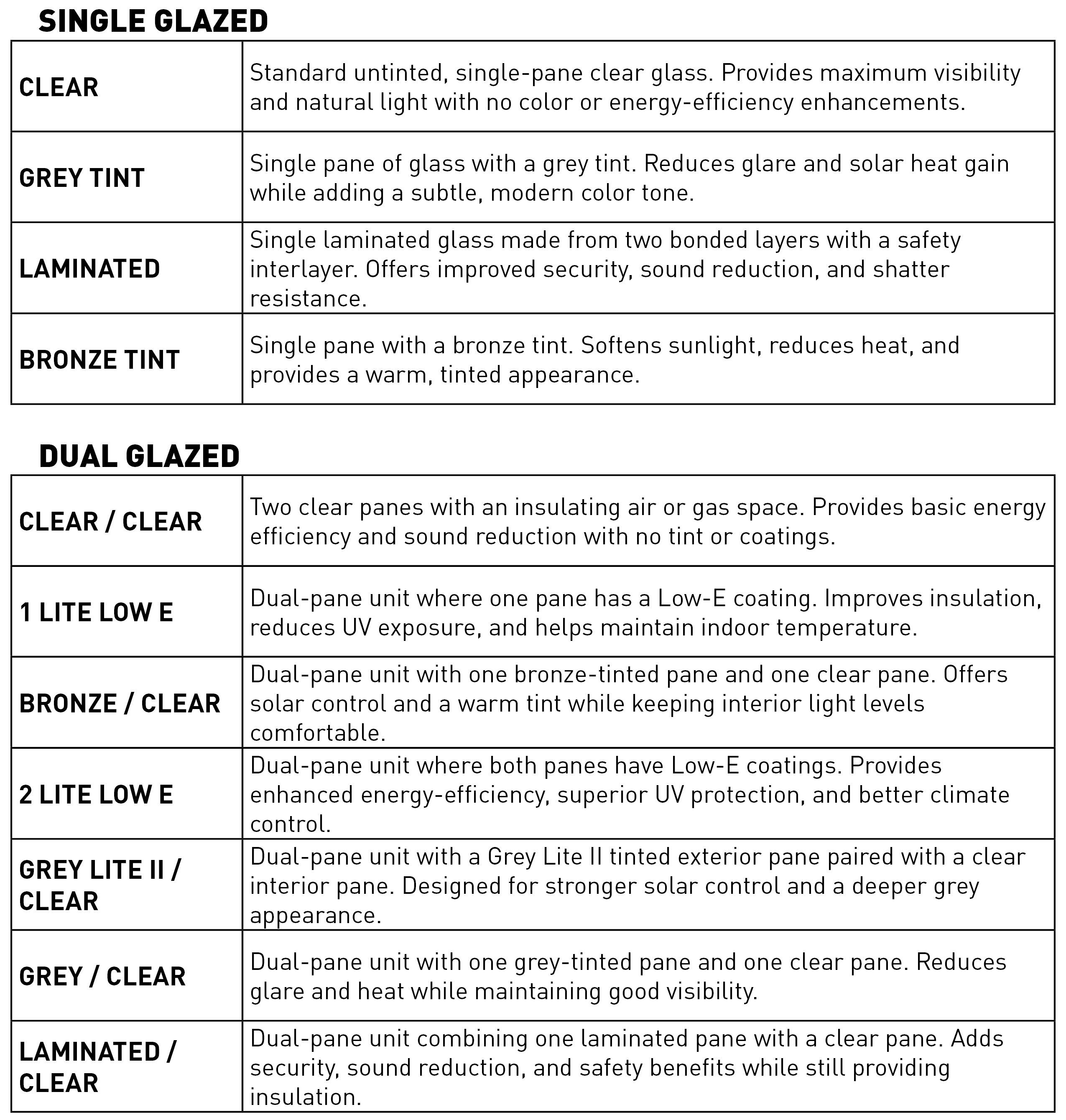

GLAZING OPTION

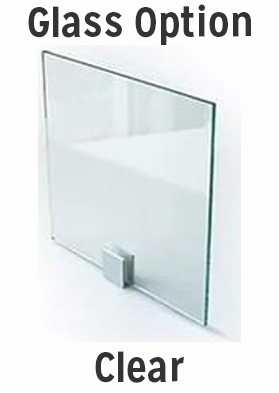

Single glazed.
Dual glazed or Open (no glass provided) also available.








Item#:
451 PH SGL SP C
You must be logged in to order this item. Log in here
Item#:
451 PH SGL SP G
You must be logged in to order this item. Log in here
Item#:
451 PH SGL SP LAM
Manufacturer:
ABI MOULDINGS
You must be logged in to order this item. Log in here
Item#:
451 PH SGL SP Z
You must be logged in to order this item. Log in here
